TECHNICAL SPECIFICATIONS

Model DD25R-86Q DD40R-86Q DD60R-86Q WH50RI-86Q
Air Flow Rate CADR 250 m³/h CADR 400 m³/h CADR 600 m³/h CADR 500 m³/h
Size 665*682*224 mm 1004*682*244 mm 1047*830*324 mm 776*683*289 mm
Return Air Filter G4
Heat Recovery Type Total Heat Recovery
Control Configuration Intelligent Control + APP
Real-time Display PM +Temperature
Configuration Pre-filter + Middle Isolate Module + Medical Grade HEPA (H13) Module Pre-filter + Intensive Field Dielectric (IFD) Module
Upgrade Configuration Control Configuration: 3.5" Touch Screen / Real-time Display: CO₂ + TVOC + Humidity / Configuration: Auxiliary Heat



Model Air Flow Rate Size Total Heat Recovery Configuration
SY-DD80 CADR 800 m³/h 1000*800*270 mm Total Heat Recovery Pre-filter
SY-DD100 CADR 1000 m³/h 1000*800*350 mm
SY-DD150 CADR 1500 m³/h 1200*900*380 mm
SY-DD200 CADR 2000 m³/h 1250*900*400 mm
SY-DD250 CADR 2500 m³/h 1250*1000*450 mm
SY-DD300 CADR 3000 m³/h 1400*1150*500 mm
SY-DD400 CADR 4000 m³/h 1450*1150*550 mm
SY-DD500 CADR 5000 m³/h 1500*1200*550 mm





HOW TO USE

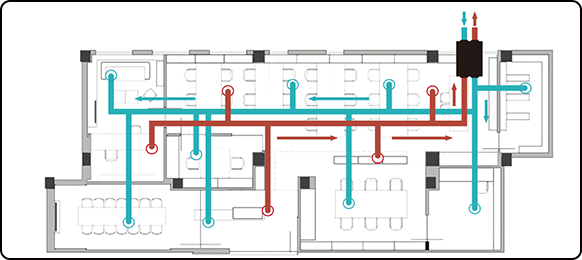

Continuously filter and purify the dirty indoor air to keep the indoor air clean

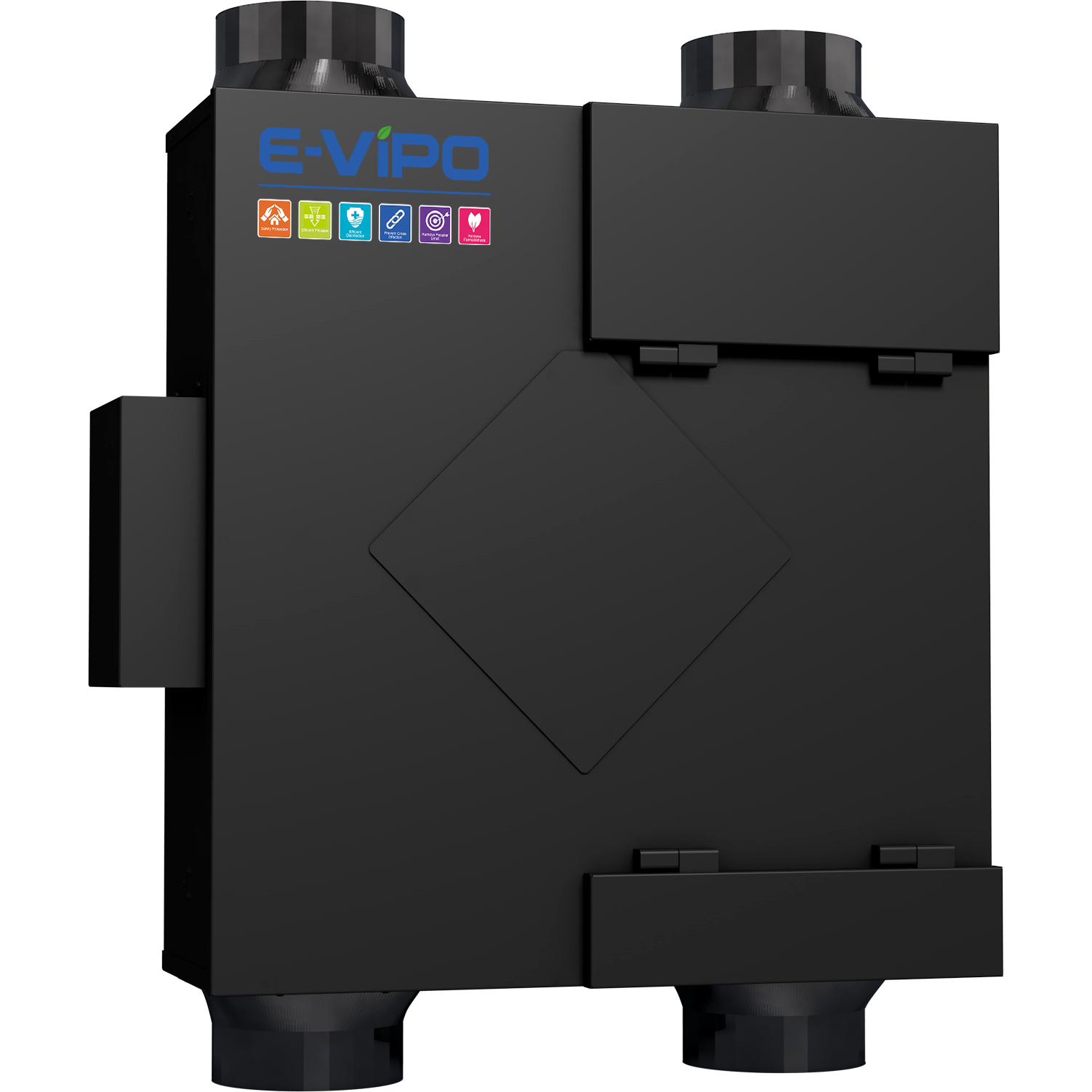

DD25
Two-way air exchange | Full heat exchange | Intelligent control
High efficiency filtration | Environmentally friendly consumables
No maintenance | Air disinfection

Purification efficiency (0.3um) ≥ 99.97%
CONTACT US
  • Model
    WALL-MOUNTED / CEILING-MOUNTED SERIES
